Differential & Transmission Fluid Service
What It Does:
The transmission and differential are responsible for taking the torque produced by the engine and delivering it to the tires. Inside both assemblies, gears, bearings, shafts, synchronizers, clutch packs, and other components operate under significant mechanical load. The fluids protecting those components must lubricate, control friction, manage heat, and maintain their properties under pressure.
Transmission fluid performs different jobs depending on the transmission design. In an automatic transmission, the fluid functions as a lubricant, coolant, hydraulic medium, and friction-control fluid for internal clutch packs and control systems. In a manual transmission, the lubricant must protect gears and bearings while also providing the friction characteristics necessary for proper synchronizer operation.
Differential fluid protects the ring and pinion gears, bearings, and other internal components as torque changes direction and is distributed to the drive wheels. Limited-slip differentials may introduce additional friction requirements because their clutch packs or other torque-biasing mechanisms depend on specific lubricant characteristics to operate correctly.
Performance fluid service replaces lubricant that has been subjected to repeated heat cycles, mechanical shear, contamination, and extreme-pressure loading before those conditions begin compromising protection or component behavior.
Why It Matters:
Increasing engine output does more than create additional acceleration. That additional torque has to travel through the transmission, driveshaft, differential, axles, and ultimately the tires.
Every hard launch, high-load shift, track session, towing event, or repeated full-throttle acceleration places additional stress on the driveline. As those loads increase, fluid condition becomes increasingly important.
Heat Management: Transmissions and differentials generate heat through friction and mechanical loading. Hard driving, towing, track use, and increased power can raise operating temperatures considerably. Excessive temperature accelerates fluid oxidation and reduces lubricant life.
Gear Protection: Ring-and-pinion gears and transmission gears operate under extremely concentrated contact loads. The lubricant must maintain a protective film under pressure to prevent excessive wear, scoring, and surface damage.
Shear Stability: Lubricants contain viscosity modifiers and additive packages designed to maintain specific characteristics under load. Repeated mechanical stress can degrade those properties over time, reducing the fluid's ability to perform as intended.
Automatic Transmission Operation: Automatic transmission fluid is directly involved in hydraulic pressure, clutch engagement, shift quality, lubrication, and cooling. Fluid condition can therefore influence both component protection and how consistently the transmission operates.
Manual Transmission Shift Quality: Manual transmission lubricant influences synchronizer behavior as well as gear and bearing protection. Using an inappropriate fluid can contribute to poor shift quality or improper synchronizer operation even when the lubricant appears sufficiently heavy or protective.
Limited-Slip Differential Performance: Certain limited-slip differentials rely on controlled friction between internal components. The correct lubricant and, where required, friction modifier are important for proper operation and can help prevent chatter or inconsistent engagement.
Increased Torque Load: Superchargers, turbochargers, engine modifications, and tuning can dramatically increase the torque transmitted through driveline components. The transmission and differential must manage that additional load every time the power is used.
Repeated Performance: A driveline doesn't only need to survive one hard acceleration. A properly maintained transmission and differential should continue transferring power predictably as temperatures rise and loads are repeated.
On a modified vehicle, the question isn't simply how many miles are on the fluid. The more important question is what those miles have asked the fluid to endure.
What to watch out for:
Transmission and differential service requires more consideration than simply selecting a lubricant with the correct viscosity printed on the bottle.
Incorrect Fluid Specification: Different transmissions and differentials require specific viscosity ranges, friction characteristics, additive chemistry, and manufacturer specifications. A fluid that physically fits into the assembly is not necessarily chemically or mechanically appropriate for it.
Excessive Heat: Repeated exposure to elevated temperatures accelerates oxidation and additive depletion. Vehicles subjected to track use, towing, hard launches, or sustained high-load operation may require more frequent service than normally driven vehicles.
Metal Contamination: Some fine metallic material can occur as components wear, particularly during break-in. Excessive metal, larger particles, or an abnormal increase in contamination can indicate developing internal wear that deserves further investigation.
Fluid Condition Being Judged By Color Alone: Appearance can provide useful information, but color by itself does not determine whether a lubricant is healthy. Heat history, contamination, odor, mileage, operating conditions, and component behavior all provide additional context.
Limited-Slip Chatter: Incorrect fluid, improper friction characteristics, worn internal components, or an incorrect friction-modifier concentration can contribute to chatter during low-speed turns. Adding friction modifier indiscriminately is not always the correct solution.
Changes In Shift Behavior: Delayed engagement, slipping, harsh shifts, inconsistent shifts, grinding, or changes in synchronizer feel should not automatically be treated as fluid problems. They may be symptoms of mechanical, hydraulic, electronic, or calibration issues that require diagnosis.
Ignoring Break-In Requirements: Newly installed gears, differentials, transmissions, and other driveline components may have specific break-in procedures and initial fluid-change requirements. Those procedures can be particularly important after performance upgrades.
Using Mileage As The Only Service Indicator: A vehicle that has accumulated relatively few miles but regularly sees track sessions, towing, hard launches, or repeated high-load operation may place substantially greater stress on its driveline fluid than a higher-mileage highway vehicle.
THE AFP APPROACH
At Ames Ford Performance, we look at driveline fluid service in the context of the entire vehicle combination.

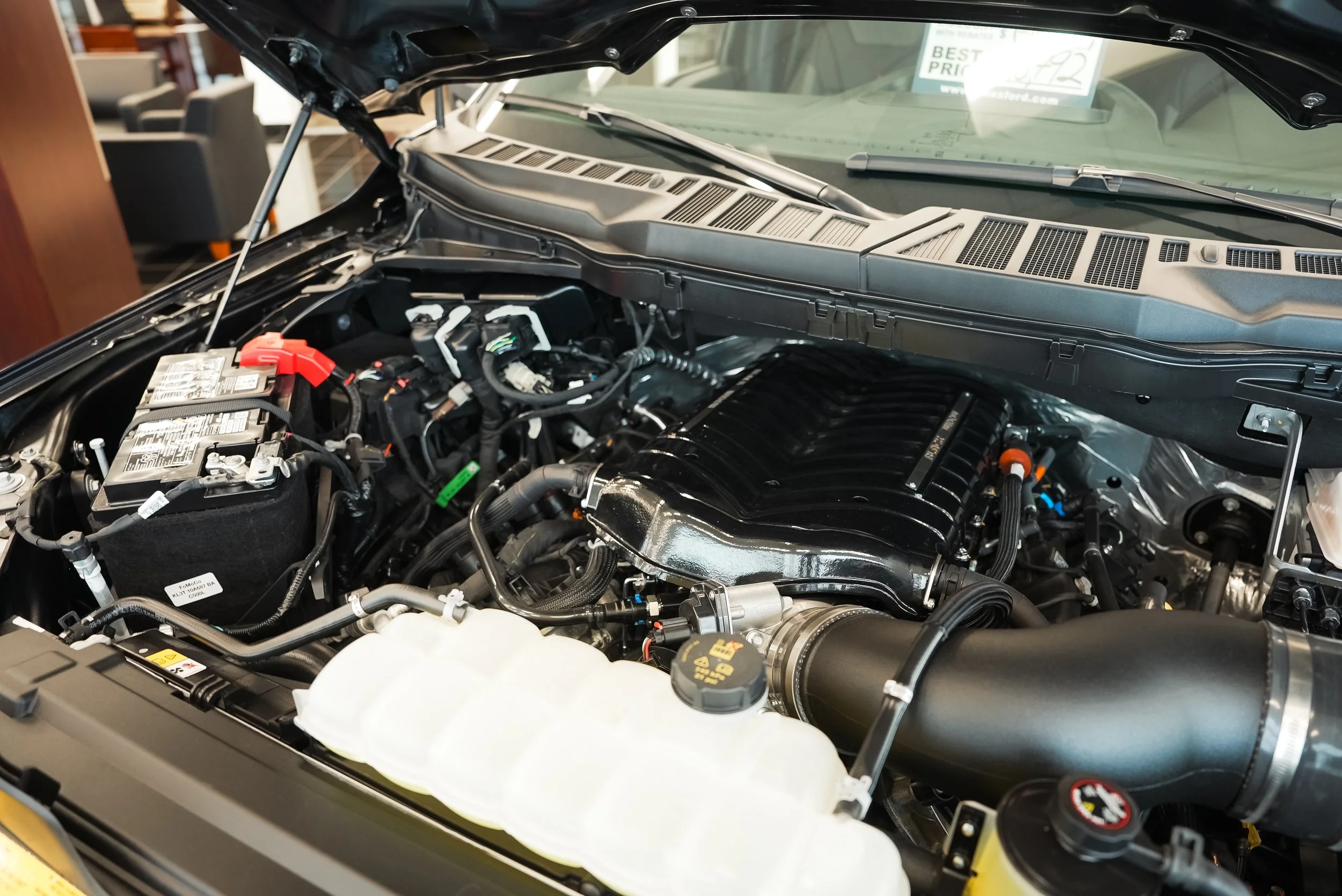

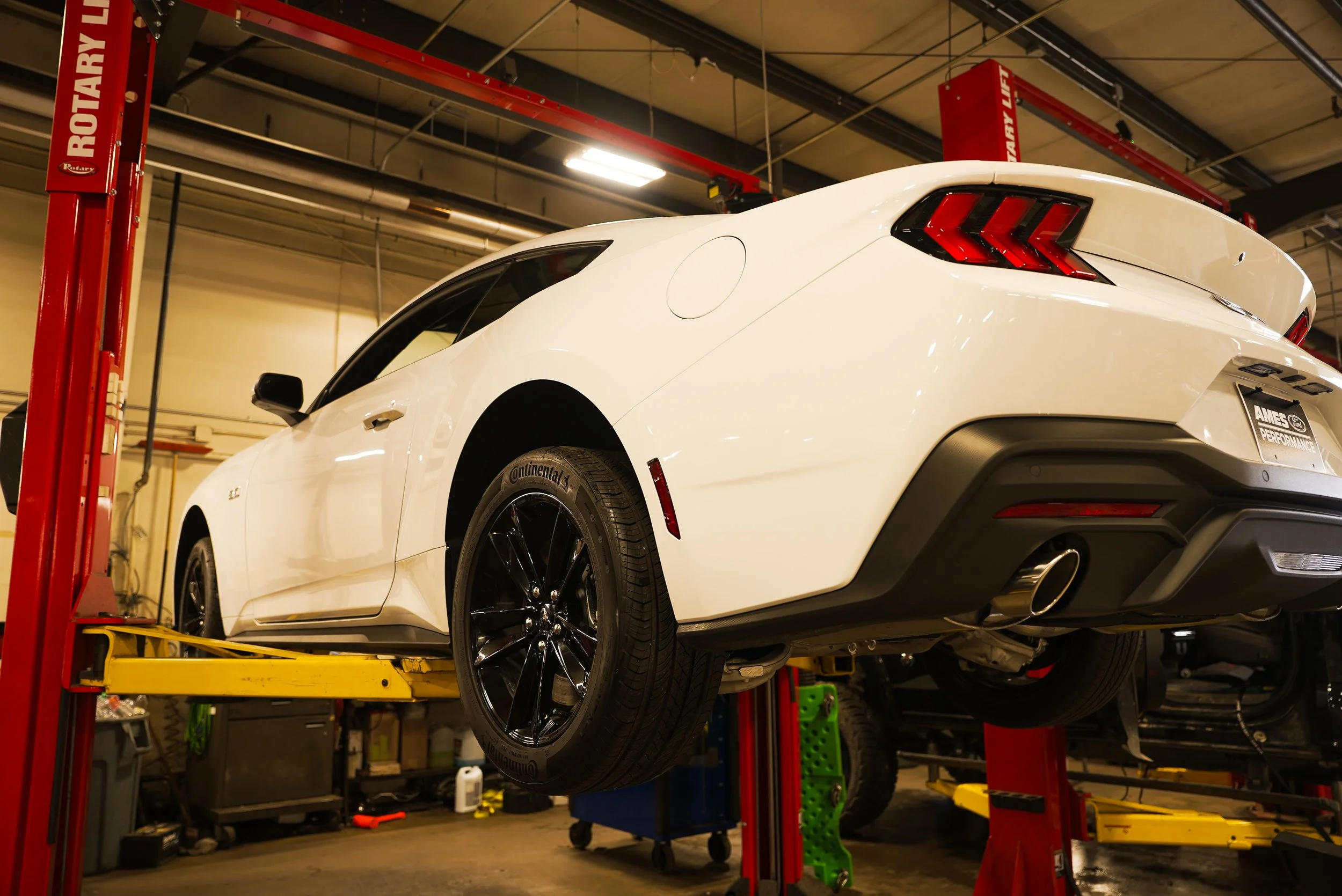

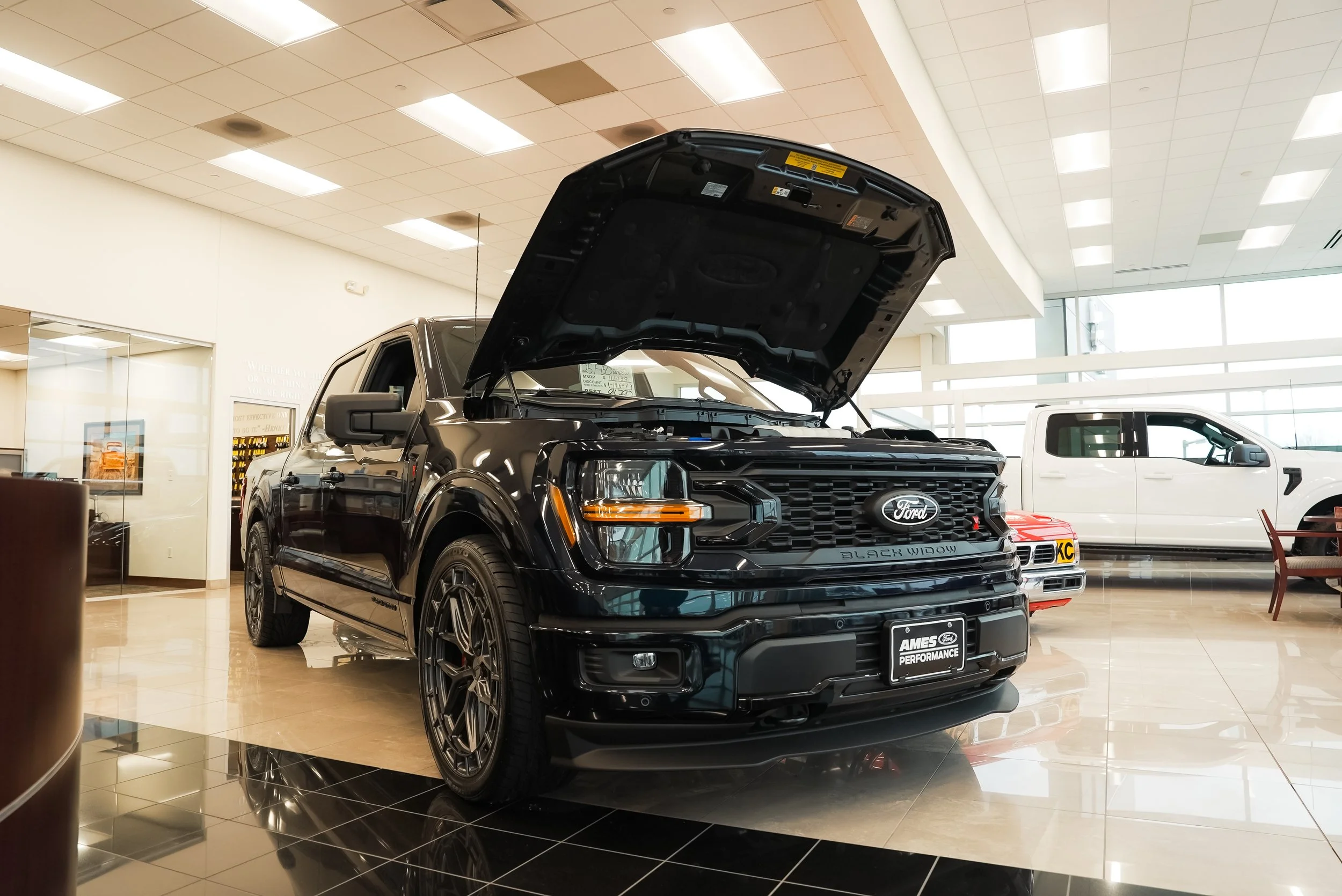

A stock Mustang used for everyday driving does not necessarily place the same demands on its transmission and differential as a Whipple-supercharged Mustang making substantially more power. A modified F-150 used for towing introduces a different combination of torque, vehicle weight, load, and heat. A vehicle used for drag racing presents another set of demands through repeated launches and rapid torque application.
We consider the transmission and differential type, vehicle modifications, power and torque level, intended use, operating conditions, and manufacturer or component-builder requirements when determining the appropriate fluid and service strategy.
We also pay attention to what comes out of the vehicle. Fluid condition, contamination, abnormal debris, leaks, and changes in component behavior can provide valuable information about what is happening inside the driveline.
Performance engines receive much of the attention because they create the horsepower. The transmission and differential are responsible for surviving it and delivering it to the ground. Proper fluid service helps ensure they can continue doing exactly that.
